SBC9000 Single Board Computer

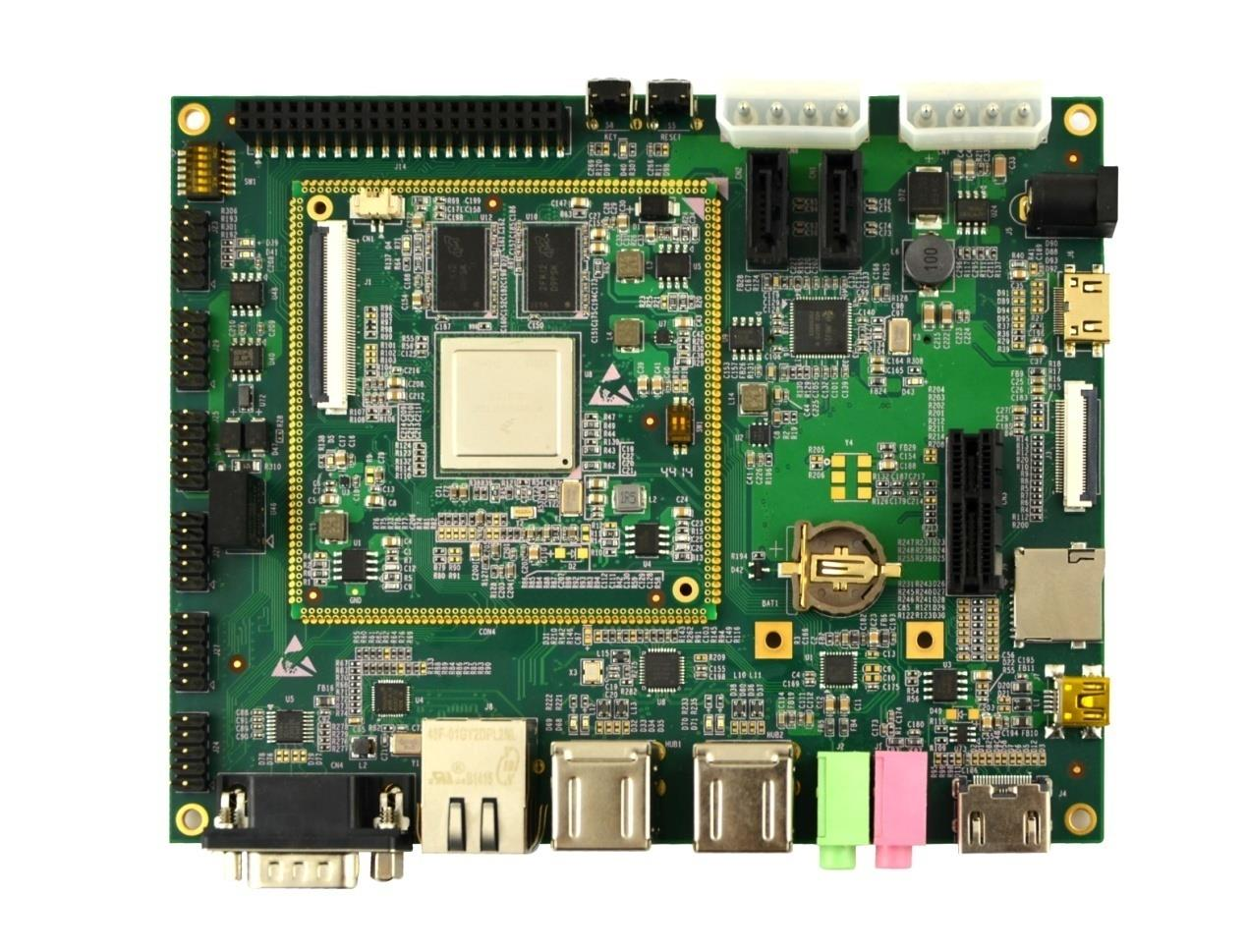

Description 1 Overview SBC9000 is an embedded single board computer designed by Embest Technology based on i.MX 6Quad processor. It comes in a configuration of a CPU module Mini9000 an Expansion board which provides 4 serial ports (one of them supports RS232 debugging),2 isolated CAN2.0 interfaces, 1 gigabit Ethernet, 1 SPI, 3 I2C, 1 SDIO, 2 SATA, 1 PCIe, 1Mini PCIe, 4 USB Host and 1 OTG, 1 LCD and 1 LVDS display interface, 1 HDMI, audioinput/output, TF card slot, etc. SBC9000 is compatible with Linux 3.10.17 and Android4.4.2, aiming to help developer in a wide range of areas such as industrial control, netbooks, all-in-one PCs, high-end mobile Internet devices, high-end PDAs, high-endportable medial players, game consoles and compact navigation devices. 2 Specification 2.1 Mini9000 CPU System On Module General Features Product Dimensions: 70 mm×68 mm Operating Temperature: 0~70℃ Operating Humidity: 20% ~ 90% (Non-condensing) Input Voltage: 5V Processor ARM Cortex™-A9 i.MX 6Quad Processor 32 KByte L1 Instruction Cache 32 KByte L1 Data Cache Private Timer and Watchdog Cortex-A9 NEON MPE (Media Processing Engine) Coprocessor 2D Graphics Processors On-Board Memories: 4GByte eMMC 4*256MB DDR3 SDRAM On-Board Interfaces: TTL232×4 (4-bit×2 2-bit×2） CAN2.0×2 RGMII×1 SPI×1 I2C×3 8-bit SDIO×1 SATA×1 PCIe×1 USB Host×1 USB OTG×1 LVDS×1 HDMI×1 LCD×1 Audio×1 Camera×1 GPMC Boot Configuration GPIO System Block Diagram   2.2 Carrier Board General Features Product Dimensions: 150 mm×120 mm Operating Temperature: 0~70℃ Operating Humidity: 20% ~ 90% (Non-condensing) Input Voltage: 12V Audio/Video Interfaces HDMI×1 LVDS×1 Audio Input (3.5mm)×1 Stereo Audio Output (3.5mm)×1 Data Transfer Interfaces 10/100/1000Mbps Ethernet×1 Isolated CAN 2.0×2 SPI×1 I2C×3 SDIO×1 SATA×2 TF card slot×1 PCIe×1 mini PCIe×1 USB host×4 USB OTG×1 Serial Port×4 (One of them supports DB9 debugging) LEDs&Buttons User-Defined Button×1 Reset Button×1 LED Power Indicator×1 User-Defined LED×2 System Block Diagram 3 Dimension
