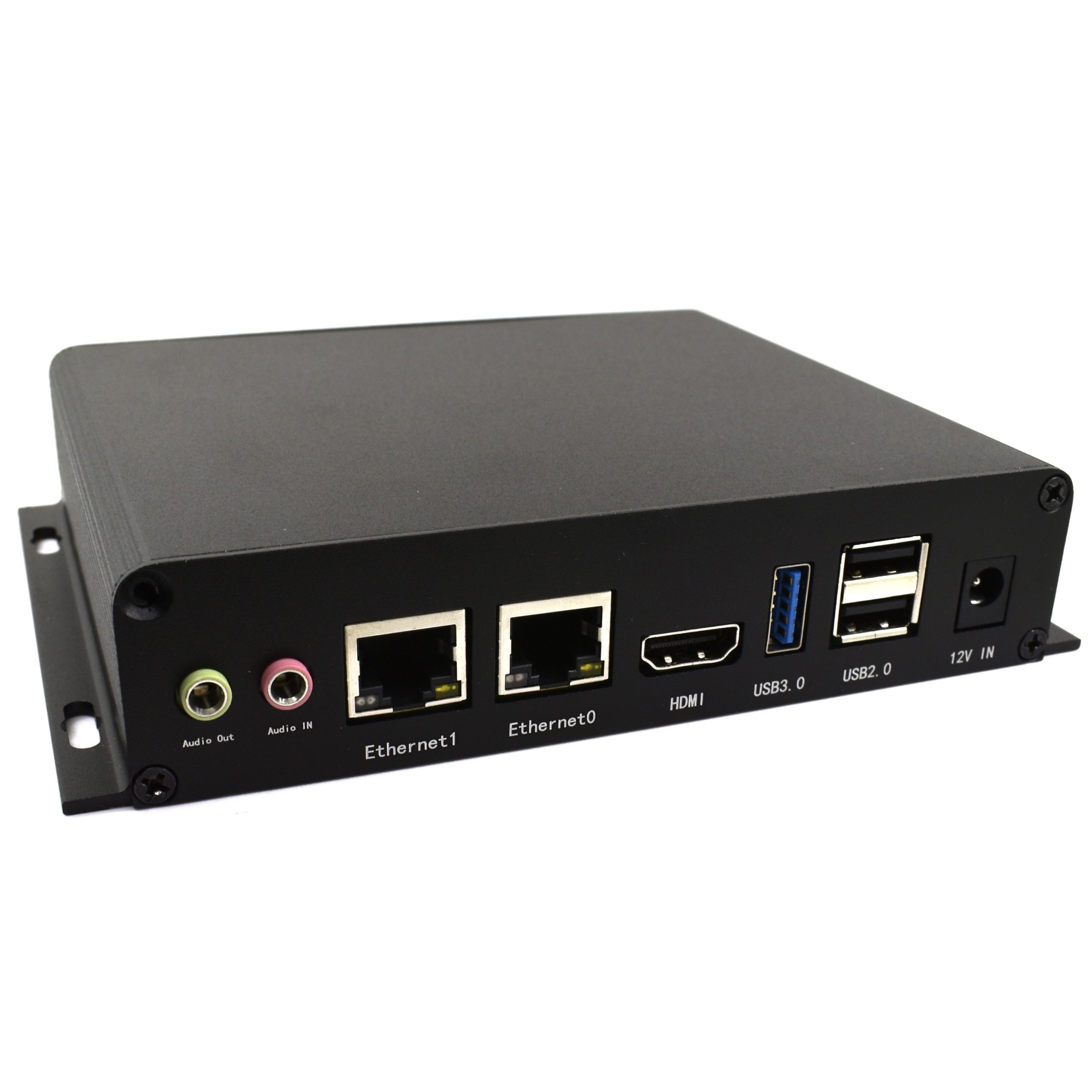

EC-8MP NXP i.MX8M Plus Edge Computer

Description Overview: EC-8MPEdge Computer is composed of SOM-IMX8MP, Carrier Board and the steel & aluminum enclosure. Engineered for industrial applications, it has wide operating temperature range from-20℃ to 70℃, and guarantees more than 50000 hours of MTBF. It’s a compact box pc that has strong connections. It comes with dual Gigabit network, 2.4GHz & 5GHz Wi-Fi/Bluetooth 5.0 ,12 B key (USB3.0) for 4G module/5G Module/, 1xM.2 M key (PCIE)for SSD expansion, 0,2XUSB2.0,1XHDMI ,1xaudioin,1xaudio out,2xDI,2xDO,1xRS485,1xCANFD,1xPWR Button. Main Features SoM Unit: CPU 2x or 4x Cortex A53 up to 1.8GHz（1.6GHz for Industrial Grade） 1x Cortec M7 up to 800MHz 375 Mpixel/s HDR ISP GC7000UL with OpenCL and Vulkan support Video Decode and Encode Optional 2.3 TOP/s NPU Memory: Up to 8GB LPDDR4 RAM (2GB default) Storage: 4~64GB eMMC(16GB default) Support boot from eMMC, Micro SD and SPI Nor Flash; Support Yocto,provide uboot,kernel,filesystem source code; Including dual Gigabit network, 2.4GHz & 5GHz Wi-Fi, Bluetooth 5.0; Rich External I/O 1x USB 3.0, 2x USB 2.0,1x RS485, 1xRS232, 1xCANFD, 2 x DI, 2 x DO, 1xHDMI,1xAudio IN,1XAudio Out 1xSIM Card Slot,1xTF Card Slot,1xAnt 2xGigabit network Rich Internal I/O 2 B Key(USB3.0)for 4G module/LoRa module/network card 2 M Key (PCIE)For 512GB/1TB SSD; 2xRS232,14PIN GPIOs,LVDS,USB2.0X3,IIC,etc… I/O Interfaces and Dimension:   Specification System Unit CPU Performance 2x or 4x Cortex A53 up to 1.8GHz 1x Cortec M7 up to 800MHz 375 Mpixel/s HDR ISP GC7000UL with OpenCL and Vulkan support Video Decode and Encode Optional 2.3 TOP/s NPU Boot Support boot from eMMC/ Micro SD /SPI Nor Flash OS Yocto LINUX-5.15.32, Uboot/Kernel/Dirver/Filesystem/ Open Source Memory Onboard 4GB LPDDR4 (1GB/4GB/6GB/8GB optional) Storage Onboard 32GB eMMC (8GB/16GB/32GB/64GB/128GB/256GB optional) SSD 512GB/1TB Optional Ethernet/Wireless Ethernet 2 x Independent MAC Gigabit RJ45 port WIFI & BT 2.4GHz & 5GHz Wi-Fi /Bluetooth 5.0, Support external SMA antenna(Share with 4G/5G/LORA/) 4G/5G M.2 B Key(USB3.0) Video & Audio Display 1 x HDMI output, Type-A female socket LVDS(Internal) 2xMIPI-CSI(Internal) Audio Audio IN/Out ,3.5mm socket Expansion DC IN 1 x Power socket for 5.5mm x 2.1mm plug USB 1 x USB 3.0 Host 2 x USB 2.0 Host Serial Ports 1xRS232 2xRS232(Internal) 1xRS485 1xCAN GPIO 2 x Isolated DI 2 x Isolated DO Internal I/O SIM Slot 1 x Built-in Micro SIM slot, push pop-up slot SD Slot 1 x Built-in Micro SD slot, push pop-up slot M.2 B Key(USB3.0) Support 4G/5G module such as Quectel 4G module, built-in SIM card, etc. M.2 M Key(PCIE) l Support LoRa module l Support other expansion such as network card, SATA and serial port Power Supply Power Input DC 12V power input for default Mechanical & Environmental Enclosure Material Steel and aluminum alloy Dimension 138.49(L)mm x114(W)mm x 32(H)mm Operating Temp. -20℃~ 70℃ (industrial grade) Relative Humidity 10%~90%   Order Information Part Number CPU NPU LPDDR4 EMMC WIFI/BT Temperature Price@1k 100PCS 30PCS MOQ EC-IMX8MP-L216CW MIMX8ML8CVNKZAB Yes 2GB 16GB Yes 0°C-70°C USD209 USD239 USD279 1 EC-IMX8MP-L432CW MIMX8ML8CVNKZAB Yes 4GB 32GB Yes 0°C-70°C USD199 USD279 USD299 1   Packing List: 1xEC-IMX8MP Edge Computer 1x12V@2A Power Adapter 1x Antenna 1xSerial Debug 1xHeatsink
