DC Contactor 2NO 2NC 3NO 3NC 4NO 4NC 50A 100A 200A 12Vdc 24Vdc 48Vdc 72Vdc 110Vdc 220Vdc DPDT DC Contactor

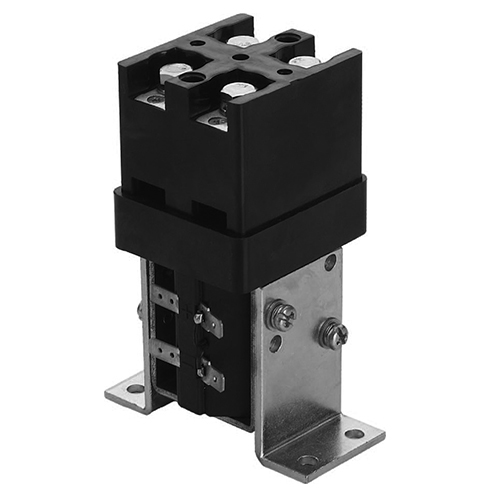

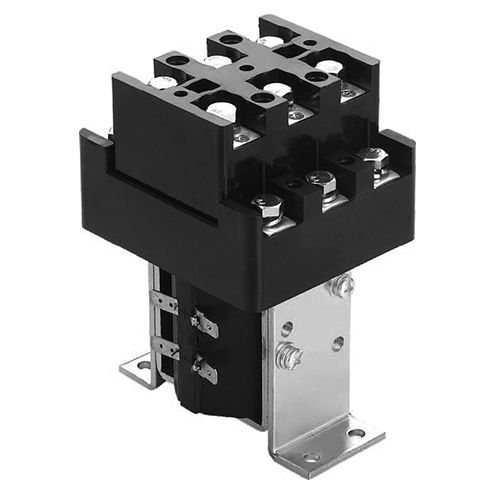

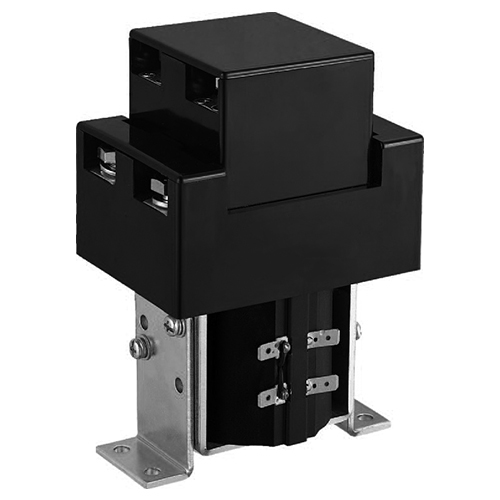

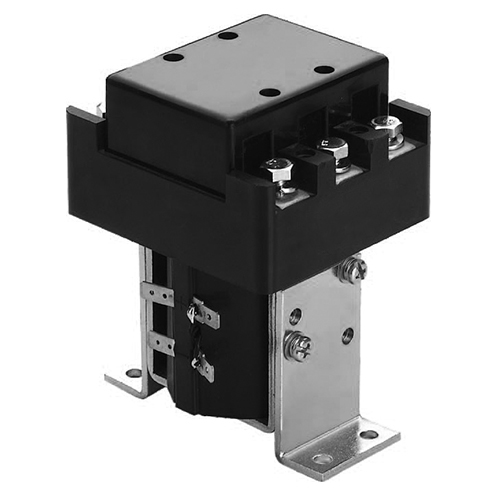

Description Place of Origin : China Brand Name : OEM brand Model Number : SW series DC Contactor 2NO 2NC 3NO 3NC 4NO 4NC 50A 100A 200A 12Vdc 24Vdc 48Vdc 72Vdc 110Vdc 220Vdc DPDT DC Contactor   The SW series has been designed for direct current DC loads, including motors as used on Electric vehicles, Telecom PDU’s, Battery Chargers, EV’s, Static power systems, Industrial trucks, Marine winches, power distribution applications.    Specifications (2NO, 2NC, 2NO 2NC DC Contactors): Model SW50-20 SW100-20 SW200-20 SW50-02 SW100-02 SW200-02 SW50-22 SW100-22 SW200-22 Photo             Rated Current (DC) 50A 100A 200A 50A 100A 200A 50A 100A 200A Rated Current (AC) 10A 30A 60A 10A 30A 60A 10A 30A 60A Contact Form 2NO 2NC   2NO 2NC Contact Circuit Voltage ≤48VDC, ≤380VAC Coil Voltage 12VDC, 24VDC, 48VDC, 72VDC, 110VDC, 220VDC etc Dielectric Voltage Strength 50Hz 1000V AC 1min Volt Drop of Main Contact <80mV Typical Pull-In Time <30ms Typical Drop-Out Time <50ms Pull-In Voltage <70%Us Drop-Out Voltage 5% – 40% Mechanical life 100 thousand times Electric life 20 thousand times Wiring Diagram       Specifications (3NO, 3NC, 3NO 3NC, 4NO DC Contactors): Model SW100-30 SW200-30 SW100-03 SW200-03 SW100-33 SW200-33 SW100-40 SW200-40 Photo Rated Current (DC) 100A 200A 100A 200A 100A 200A 100A 200A Rated Current (AC) 30A 60A 30A 60A 30A 60A 30A 60A Contact Form 3NO 3NC 3NO 3NC 4NO  Contact Circuit Voltage ≤48VDC, ≤380VAC Coil Voltage 12VDC, 24VDC, 48VDC, 72VDC, 110VDC, 220VDC etc Dielectric Voltage Strength 50Hz 1000V AC 1min Volt Drop of Main Contact <80mV Typical Pull-In Time <30ms Typical Drop-Out Time <50ms Pull-In Voltage <70%Us Drop-Out Voltage 5% – 40% Mechanical life 100 thousand times Electric life 20 thousand times Wiring Diagram
