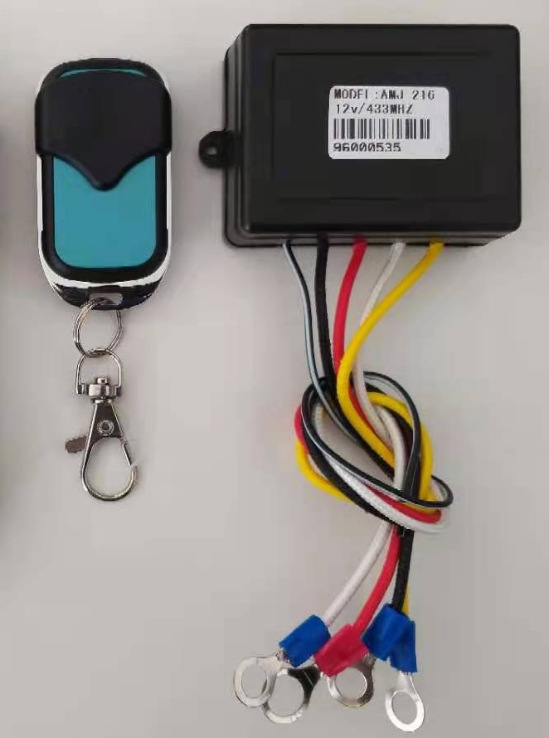

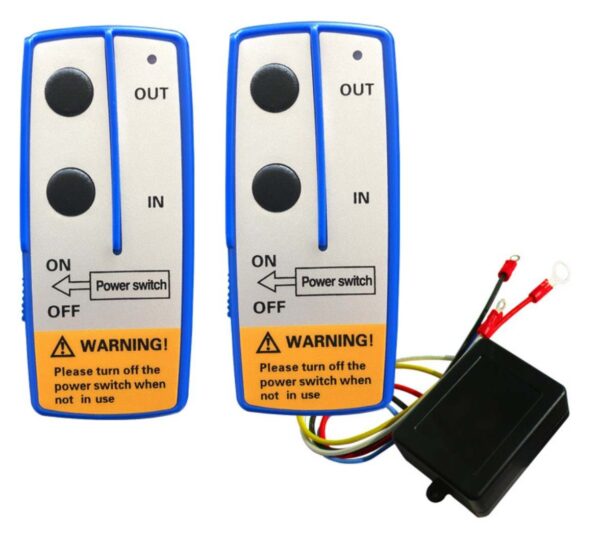

12V 24V 250A 2000-5000 Lbs Winch Solenoid Relay Contactor Winch Solenoid with wireless remote control for ATV UTV SUV Truck
$ 27.00
Description Place of Origin : China Brand Name : OEM brand Model Number : W50-T-P-DE Electricity Type : DC Number of Pole : 1 Phase : 1 Main Circuit Rating Voltage : 12Vdc or 24Vdc Main Circuit Rating Current : 250A 12V 24V 250A 2000-5000 Lbs Winch Solenoid Relay Contactor Winch Solenoid with wireless remote control for ATV UTV SUV Truck W50-T-P-DE (DC66P) DC Contactor (Winch Solenoid) have been designed for direct current DC loads, particularly motors used on electric winches and electric vehicles. – Motor Reversing DC Contactor (Winch Solenoid) – Coil Voltage: 12Vdc or 24Vdc – Paired Single Pole Double Throw (Double Pole, Changeover Contacts) – Ideal for Marine Applications, such as, Bow Thrusters, Windless and Winches. Model W50-T-P-DE (DC66P) Photo Coil Voltage 12VDC, 24VDC, 48VDC, 72VDC etc Rated Voltage of Contact Circuit ≤48VDC Rated Continous Current 50A Rated Intermittent Current 250A Dielectric Voltage Strength 50Hz 1000V AC 1min Volt Drop of Main Contact < 100mV Mechanical life 100 thousand times Electric life Continous 20 thousand times, Intermittent 2 thousand times Contact Form Double Pole, Changeover Contacts (Paired Single Pole Double Throw) Coil Power 25-27W Typical Pull-In Time (N/O Contacts to Close) <30ms Typical Drop-Out Time (N/O Contacts to Open) <50ms Pull-In Voltage (Coil at 20℃) <75%Us Drop-Out Voltage (Coil at 20℃) 5% – 40% Main stud terminals M8 Feature Heavy load for various Winches, Tarp motors, Windless, etc Wiring Diagram For the Following Winches KFI: ST17, S2000, A2500, A3000, U4500, U4500w, SE25, SE35, SE45 WARN: A2000, A2500, U2500, 1.5ci, 2.5ci, 2.5ce, 3.0ci, 3.0ce, 3.0s WARN: RT15, RT25, RT30, XT15, XT25, XT30 WARN: RT40, XT40 WARN: Vantage 2000-3000lbs, Provantage 2500-3500lbs WARN: Vantage 4000lbs, Provantage 4500lbs RAMSEY : ATV2500, ATV3000 SUPERWINCH : Terra25, Terra35, Terra 45, LT2000, LT2500, LT300 MILE MARKER : PE2.5, PE 3.5, VMX2.5, PE2000, PE3000, PE2500, PE3500 MASTER LOCK : 1500lbs #2955AT CYCLE COUNTRY : Work Power 1500 and 2500, Powermax 2500 and 3500 BADLAND : 2000lb #68146 BADLAND : 3000lb #68145, 5000lb #68144 CHAMPION : C10013, C10014, C10018, 10020, 10024, 12053, 12503 13501(requires rollers), 14061 CHAMPION : 14501, 14551, 14552, 40252 (4500lbs) (Requires purchase of correct Roller Fairlead Bracket KFI #100695) CHAMPION : 10028, 10032, 12001, 12002, 13001, 20049, 20051, 20249, 30045, 30145 CHAMPION: 14001 and 14061 KEEPER CORP. TRAKKER : KT2500, KT3000, KT2500C, KT3000C, KT4000, KT4000C , KT2000 SMITTYBILT : XRC 2.0 SMITTYBILT : XRC 3.0 XGEAR: X3000, X4000 VENOM: 2000, 2500, 3000, 3500, 4000, 4500, 5000 (Hardcore Series) W50-T-P-DE (DC66P) Installation Diagram:
