Cordona Quick shifter Blipper Aprilia RSV RS 660

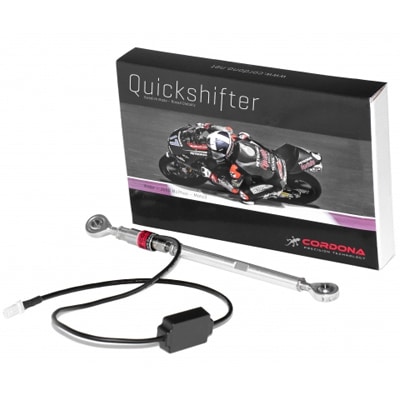

Type: GP ASG Superbike Quickshifter – Blipper -Application: Aprilia RS 660 RSV4 – Interface: ‘plug and play’The Cordona analogue 0-5v load cell with strain gauge technology from MotoGP, gives your gear shifts a significant upgrade in performance. You will experience a faster, smoother and more distinct gear shift performance that affect your bike chassis less than any OEM shifter. The completely sealed sensor without moving parts gives a far better reliability than any OEM shifter. The new introduced EVO version have a digitally ‘spring-loaded’ output signal which results in even faster shifts for many bikes from street, adventure to superbikes. Included: Complete gear linkage 125mm* aluminium rod with M6 left and right threads, left and right rod ends/uniballs** left-right nut-stud 4 cable ties 3M Velcro @ 0-5v analogue high sensitive Strain Gauge GP ASG Superbike load cell @ strain gauge technology, no moving parts in sensor @ linear analogue output to bike ECU, 2.5v (at neutral gear), range 300N to 0.5v/4.5v @ the EVO version have a output signal with ‘rate dependent hysteresis’ character @ configurable push or pull direction @ 5-15v DC power supply @ 20MHz processor with adaptive calibration for temperature & vibration @ max temperature sensor 125°C (150°C for short periods), electronic module 85°C @ temperature drift <0.04% within operation range -10°C to 125°C. @ completely sealed and weather protected (IP68) sensor and module @ high precision CNC machined stainless steel housing @ dimensions; 45mm long, 14mm diameter @ total weight sensor-electronics 55g, complete linkage incl. rod-uniballs 120g @ M6 ’magical’ threads, left and right threads in both sensor ends @ CE mark (EMC radiated) *different rod lengths can be ordered if needed, see Spare part and Installation Materials. ** high spec SKF racing rod ends/uniballs can be ordered separately, see Spare part and Installation Materials.Technical specification
