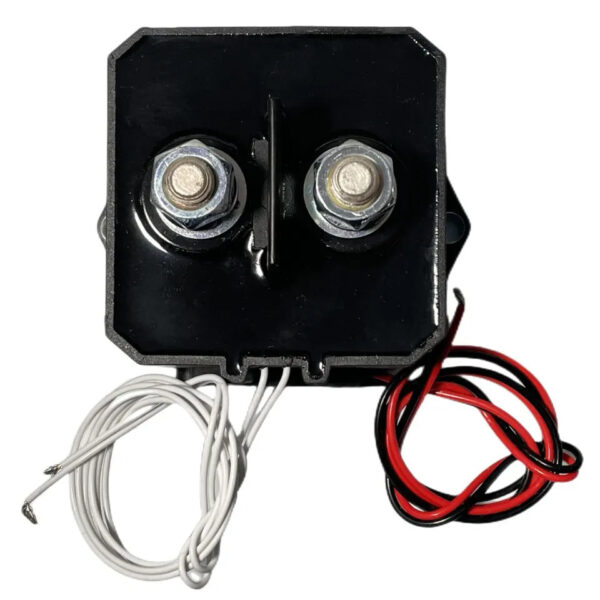

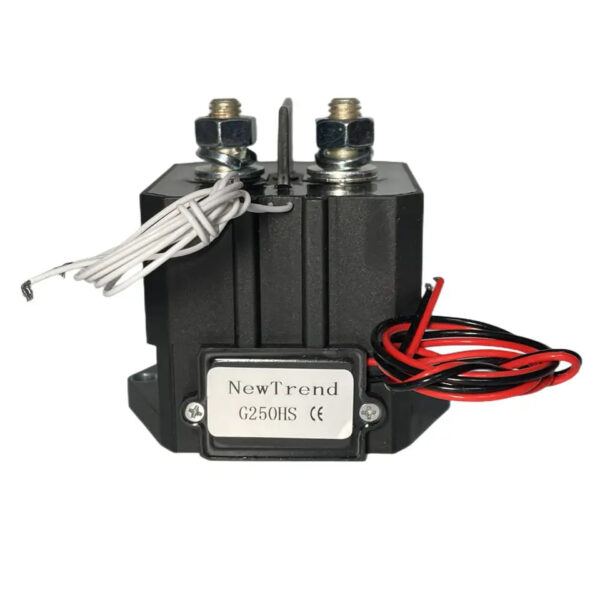

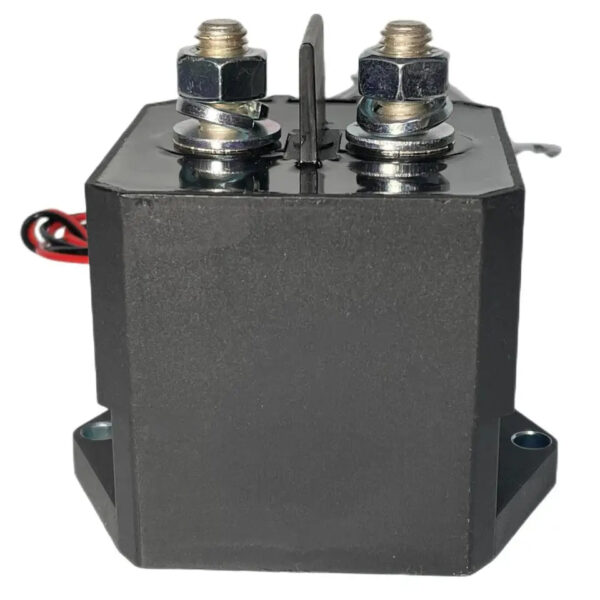

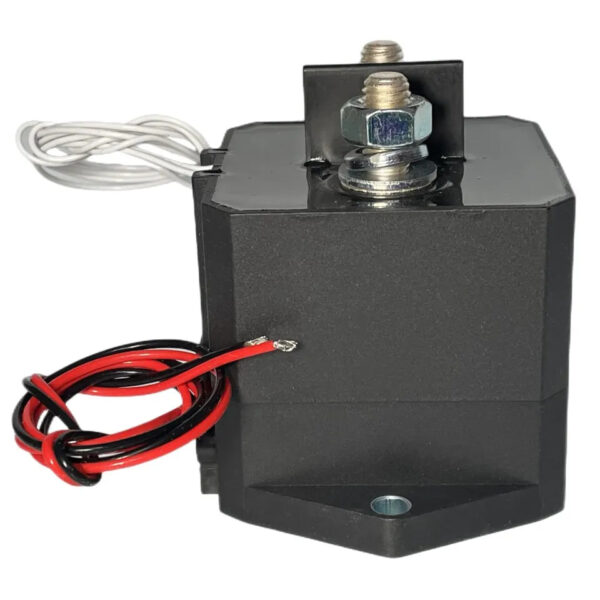

50A 100A 200A 250A 300A 400A 500A Electric vehicle EV Charger Relay 800V 900V 1000V DC Charging HV High Voltage DC Contactor
$ 18.00
Description Place of Origin : China Brand Name : OEM brand Model Number : G50HS, G100HS, G150HS, G250HS, G300HS Electricity Type : DC Number of Pole : 1 Phase : 1 Main Circuit Rating Voltage : 9V – 36V DC Main Circuit Rating Current : 50A 100A 200A 250A 300A Contact Voltage Rating : 12 – 1000V DC Contact Form : SPST-NO Coil Voltage : 12V, 24V, 36V 50A 100A 200A 250A 300A 400A 500A Electric vehicle EV Charger Relay 800V 900V 1000V DC Charging HV High Voltage DC Contactor Fully Sealed High Voltage DC Contactor Features: DC 12-1000V rated load voltage of contact circuit. SPST-NO of contact form, 12 volt, 24 volt coil for selecting. Main contact voltage drop at 250A, not above 100mV. The connection of contact and coil need to be nonpolarity. Efficient coil, retentive power is only 2-2.3W, counter electromotive force is 0V. The joint way of the coil is very convenient. The coil has no counter force of electromagnetism. Compare to the similar products, this product is smallest and lightest. High Voltage DC Contactor Specifications: Model G50HS G100HS G150HS G200HS G250HS G300HS Rated Current 50A 100A 150A 200A 250A 300A Contact type SPST-NO Contact rated voltage & current 12-1000Vdc Coil voltage 12Vdc, 24Vdc, 48Vdc Coil power consumption ≤6W Output Connectors M5 Bolt and Lockwasher Connections Connectors Wire Leads for Control Circuit Pickup voltage ≤75%Us Release voltage ≤7Vdc Pickup time ≤30ms Release time ≤20ms Electric life (450Vdc) ≥5000 times Electric life (750Vdc) ≥2000 times ≥1000 times Electric life (900Vdc) ≥2000 times ≥1000 times Ingress Protections IP67 Working temperature -40 to 85°C G250HS 250A High Voltage DC Contactor Electric Diagram: G259HS 250A High Voltage DC Contactor Dimension:
