1600 Amp 2000 Amp 3000 Amp NO Normally Open 80VDC or below Contacts 12V 24V 48V DC coil 1600A 2000A 3000A DC Contactor

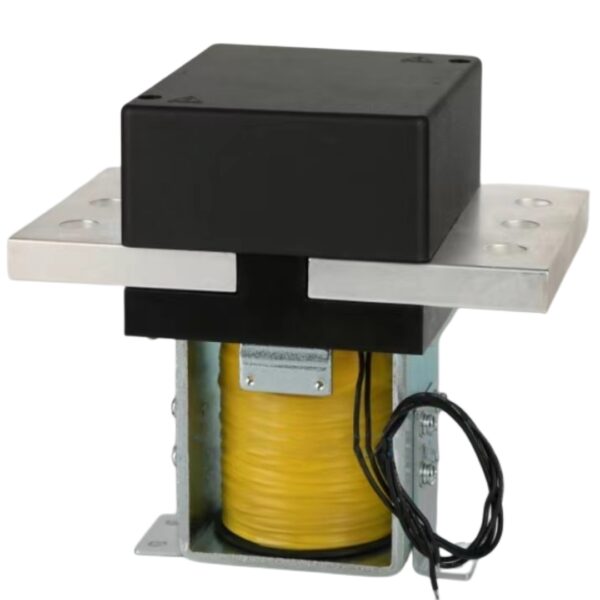

Description Place of Origin : China Brand Name : OEM brand Model Number : ZW1600A, ZW2000A, ZW3000A Electricity Type : DC Number of Pole : 1 Phase : 1 Main Circuit Rating Voltage : DC 12V, 24V, 36V, 48V, etc Main Circuit Rating Current : 1600A/2000A/3000A Contact Voltage Rating : DC 12 – 80V Contact Form : Normally open Coil Voltage : DC 12V, 24V, 36V, 48V, etc 1600 Amp 2000 Amp 3000 Amp NO Normally Open 80VDC or below Contacts 12V 24V 48V DC coil 1600A 2000A 3000A DC Contactor   ZW1600A/ZW2000A/ZW3000A DC Contactor has one normally open contact, for electric vehicles, telecommunication equipment, engineering machinery, car batteries, electric forklift trucks, trains, ships, electronic control systems such as uninterruptible power supply.   Product Type ZW1600A/ZW2000A/ZW3000A  Contact form  1NO, 1NO 1NC  Coil Rated voltage(DC V)  6V,12V,24V,36V,48V,60V,72V,84V,120V,150V,220V etc.  Contact voltage(DC V)  ≤80V  Rated load current of contact 48V circuit (DC-1)  2000A  Typical voltage drop across contacts per 100A  <80mV  the cooling pull-in voltage at (20±5)℃ (V) <70%  the cooling drop-out voltage at (20±5)℃(V) <35%,>5%  Working voltage range of 40 degrees celsius coil  0.8-1.2Us  Drop-out time(n/o contacts to open)  50ms  Pull-in time (n/o contacts to close)  10ms  connect the maximum contact bounce time  10ms  Disconnect the maximum contact bounce time  3ms  Insulation resistance  20MΩ  Electric strength to resist  50Hz/60Hz 1000VAC 1minute  Typical fault currents which can be ruptured  4000A/5ms at 48V DC  Coil power (W)  20-45  Temperature rise of coil (K)  ≤80  Temperature rise on outgoing terminal (K)  ≤65  Electric life  10000 times  Mechanical life  300 thousand times  Work specification  Continuous (default) or Intermittent  Contact material  AgCdO  Load terminal type  3-M12 Rose  Coil terminal type  0.3 square wire,320mm long  Auxiliary contact rated load (choose)  2A/48VDC, 5A/24VDC
